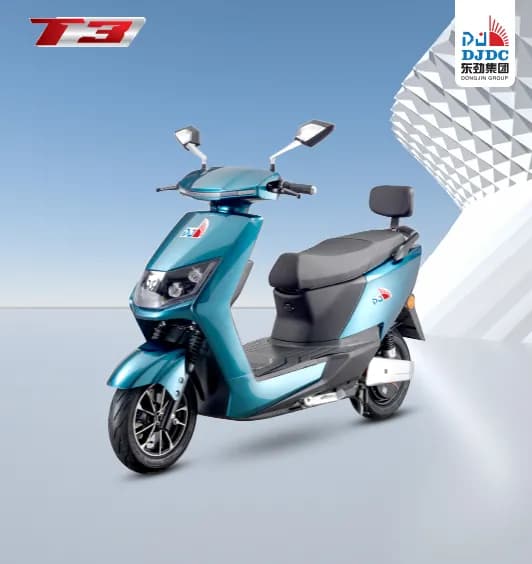

T3 Series

Main technical parameters and performance indicators of the vehicle

Overall dimensions: length × width × height: 1775×705×1095 mm

Front and rear wheel center distance: 1305 mm

Maximum speed: 65 km/h

Continuation mileage: ≥80 km

Acceleration performance (100m): 17 s

Braking distance: Dry 8/Wet 12

Gradeability: 8°

Driving current: 11 A

Minimum ground clearance: 155 mm

Headlight luminous intensity: 4000 cd

Steering angle (left or right): Left 43° Right 44°

Braking operation mode (front/rear): Front and rear handbrakes

Brake type (front/rear): Front disc brake, rear 110 hub brake

Tire specifications (front/back): 3.0-10 Tubeless

Main technical parameters of batteries

Battery Type: Lead Acid

Rated capacity: 20Ah/32Ah Optional Ah

Nominal voltage: 72V

Main technical parameters of the motor

Motor type: 10 inch electric scooter

Motor rated power: 1200W

No-load speed: 550±10r/min

Rated voltage: 60V

Output maximum torque: 90Nm

Main technical parameters of the controller

Undervoltage protection value: 52.5±0.5V

Overcurrent protection value: 32A

Main technical parameters of charger

Maximum charging voltage:74V

Charging Current: 3A/4A

Basic Configuration

60/72V20/32AH, 213 type35 high motor,12 tube controller, disc brake alloy wheel, front 220 disc rear hub, 3.0-10 far star widened steel tire, aluminum shelf with backrest

Main selling points

Blackberry instrument panel/disc brake iron wheel/front disc and rear drum/3.00-10 vacuum tire/dual remote control/AT power

Vehicle packaging size: 1775×705×1095 mm

Gross weight of vehicle (including iron frame carton packaging): 126 kg

Vehicle quality: 109 kg

Empty weight: 68 kg

Battery: 72V32AH

charger: AC220V Bengal plug, DC 72V 3.0A English label, without Chinese characters
